Silicone Roof Coatings: Specifier's Guide (2026)
Silicone roof coating systems compared by DFT, ponding-water resistance, and service life. ASTM D6694, primer rules, CRRC reflectivity, and the contractor path that holds warranty.
Disclosure: Affiliate links to retailers and manufacturer-direct programs. Recommendations are spec-driven, not commission-driven.
Use Case

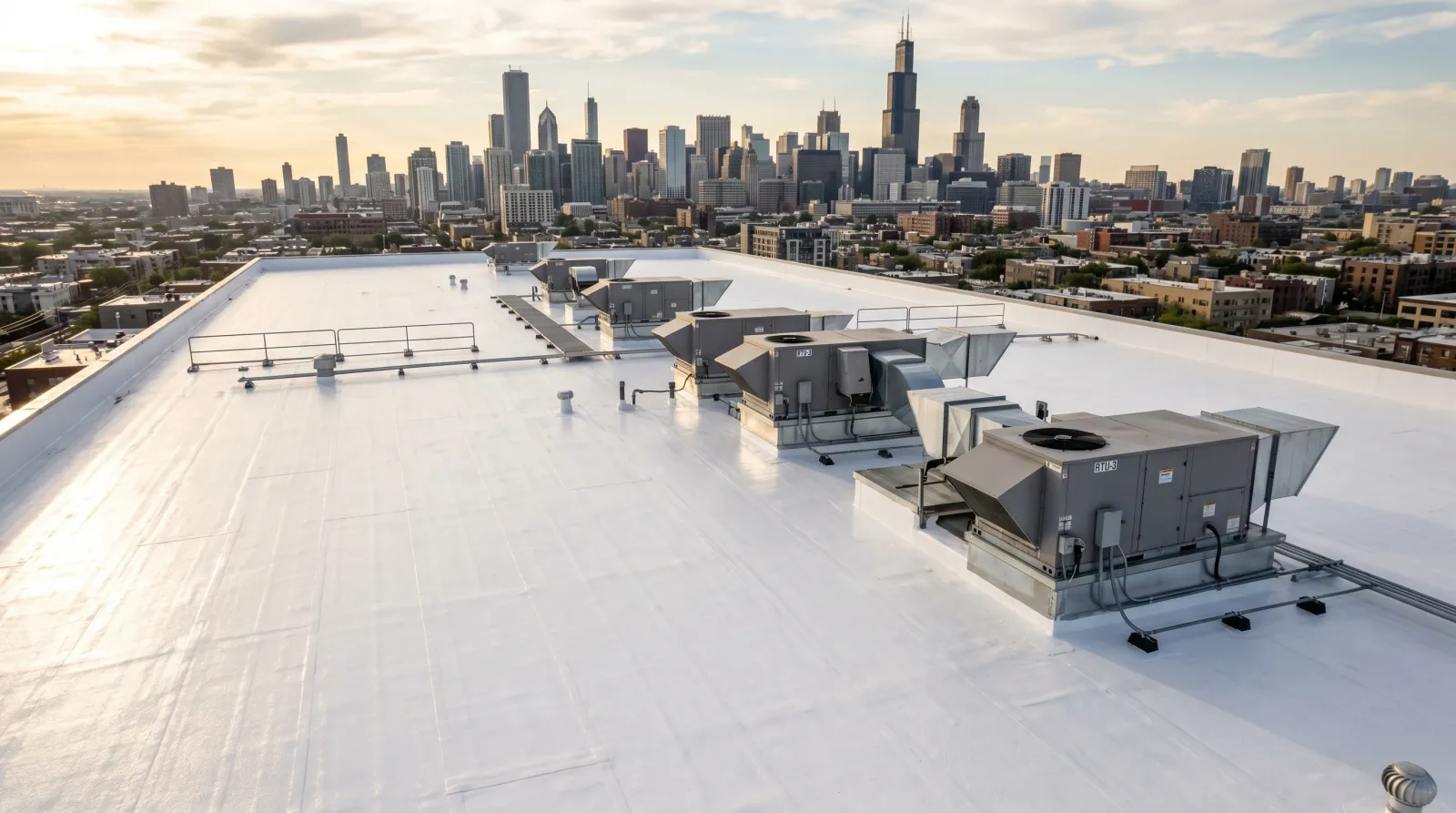

Silicone roof coating is a fluid-applied membrane restoration for low-slope commercial roofs. It is specified to extend the service life of an existing roof, not to build a new one. The asset is almost always an aging single-ply membrane (TPO, EPDM, PVC, Hypalon), a built-up roof, a modified-bitumen roof, a metal roof with seam leaks, or a previously coated roof at the end of its first cycle. The owner has a roof that is structurally sound but leaking at seams, chalking, or simply out of warranty. A full tear-off costs three to five times what a coating restoration costs and sends the old roof to a landfill. The coating spec is the capital-deferral move.
What silicone brings that acrylic does not is ponding-water performance. Low-slope roofs drain slowly. Water sits in low spots past the 48-hour window that defines ponding under most codes. 100% silicone keeps its film and adhesion under standing water; acrylic elastomerics (ASTM D6083) re-emulsify and fail in the same spot. On any roof with known ponding, the spec calls for silicone (ASTM D6694).
The second driver is reflectivity. A white silicone field coat reflects 80 to 85% of incident solar radiation at install, which drops rooftop membrane temperature, cuts cooling load, and qualifies for Energy Star, CRRC ratings, and California Title 24 cool-roof compliance. Many utilities and municipalities pay cool-roof rebates that offset part of the coating cost.
Service life expectations: 10 years for a single restoration coat at minimum DFT, 15 years for a properly reinforced two-pass system, and 20 years where the manufacturer warranty and applicator credential support it. A silicone coating is renewable. At end of cycle the owner washes and recoats with a single maintenance coat rather than tearing off, which is the long-run economic case for the chemistry.
Spec Requirements
The spec block, before any product name. Numbers vary by manufacturer data sheet; the categories do not.
| Spec | Value |
|---|---|
| Dry film thickness (DFT) | 20–35 mils dry total; 25 mils typical for a 15-year system |
| Application rate | 1.5–2.5 gal / 100 sq ft total, split across two passes |
| Coverage @ DFT | 40–65 sq ft / gal per coat at spec’d wet mil |
| VOC | <50 g/L high-solids silicone; CARB and SCAQMD Rule 1113 roof coating category compliant |
| Standards | ASTM D6694 (silicone roof coating), ASTM C794 (adhesion-in-peel), ASTM D2370 (tensile/elongation), ASTM D7281 (wind-driven rain) |
| Reflectivity | CRRC initial SR ≥0.83 white; 3-yr aged SR ≥0.70; Energy Star / Title 24 compliant white |
| Substrate prep | Power-wash to remove chalk, dirt, biological growth; spot-prime per substrate; SSPC-SP1 solvent clean of oils on metal |
| Primer | Required on bare metal, asphalt, gravel BUR, and some weathered single-ply; adhesion test (ASTM C794) decides |
| Seam / penetration detail | Polyester reinforcing fabric embedded in base coat at all seams, laps, drains, curbs, and penetrations |
| Service temp | -40°F to 250°F cured film; do not apply below 50°F surface |
| Cure to rain | Skin / wash-off resistance 1–8 hours; full cure 12–24 hours |
| Dew point / humidity | Surface ≥5°F above dew point; suspend if rain inside wash-off window |
The three numbers that decide the outcome are the field DFT, the adhesion test result that dictates primer, and the quality of the seam detail work. Field crews and inspectors track wet mils with a notched gauge during application because dry mil verification on a flexible white membrane is harder to read in place.
System Chemistry Compared
Before naming products, pick the chemistry class. Four fluid-applied roof chemistries compete for the low-slope restoration job. Each answers a different exposure.
| Chemistry | Recoat / cure | Service temp | Ponding water | UV / weather | $/sq ft installed | Best for |
|---|---|---|---|---|---|---|
| 100% Silicone (this guide) | Moisture-cure; 1–8 h skin | -40°F to 250°F | Excellent; holds film under standing water | Excellent; near-zero erosion | $1.50–3.50 | Ponding roofs, single-ply restoration, high-UV regions |
| Acrylic elastomeric | 2–24 h recoat | -20°F to 200°F | Poor; re-emulsifies | Good | $0.90–2.25 | Sloped roofs, dry climates, budget restoration |
| Polyurethane (aromatic/aliphatic) | 4–24 h | -40°F to 200°F | Good | Aliphatic only is UV-stable | $2.00–4.50 | Traffic-bearing roofs, decks, impact zones |
| SEBS / rubberized asphalt | varies | -20°F to 180°F | Moderate | Fair | $1.25–3.00 | Metal roof seams, modified-bitumen patch |
Silicone wins on ponding and on UV erosion resistance. It chalks but does not erode, so the film thickness holds for the full cycle. Its trade-offs are real: silicone is slick when wet (a fall hazard the OSHA note below addresses), it holds dirt and loses some reflectance over time, and almost nothing sticks to cured silicone except more silicone. That last point governs the failure modes section. If a roof is genuinely flat-and-dry in a low-UV climate and the budget is tight, acrylic is the honest answer. If it ponds, silicone is the answer.
Recommended Systems
Three full multi-coat stacks at different performance points. Each is a restoration system: power-wash, prime where the adhesion test requires it, reinforce the seams and penetrations with embedded fabric, then field-coat in two passes to spec DFT. Verify the current product data sheet and warranty terms against your project before bid.
System a — GACO 100% Silicone (premium, Ponding-Rated)
| Layer | Product | DFT |
|---|---|---|
| Primer (as required) | GacoFlex E5320 epoxy primer (metal/asphalt) | 2–3 mils |
| Seam reinforcement | GacoFlex SF2000 polyester fabric + base coat at seams/penetrations | embedded |
| Field coat | GacoRoof 100% silicone (two passes) | 20–25 mils |
| Total | 22–28 mils |
Service life 15–20 years with the authorized-applicator warranty. GACO (now under Holcim Elevate) wrote much of the silicone restoration playbook and its products carry the longest installed track record in single-ply silicone coating. The two-pass field coat at 1.5 gal/100 sq ft per pass is the workhorse spec for a 15-year system. GACO silicone roof coatings page.
System B — Henry 587 100% Silicone (value, Broad Substrate)
| Layer | Product | DFT |
|---|---|---|
| Primer (as required) | Henry 287 metal/asphalt primer | 2–3 mils |
| Detail coat | Henry silicone base + reinforcing fabric at seams | embedded |
| Field coat | Henry 587 100% Silicone (two passes) | 20–28 mils |
| Total | 22–31 mils |
Service life 12–15 years. Henry (a Carlisle company) carries a broad substrate-primer line, which makes System B the practical choice on a mixed roof of part metal, part modified-bitumen, part old acrylic. Distribution through commercial roofing supply is wide, and the product is stocked rather than special-ordered in most markets. Henry roof coatings page.
System C — Sherwin-Williams Silicone Restoration (pro Retail, Local Support)
| Layer | Product | DFT |
|---|---|---|
| Primer (as required) | Loxon / metal bonding primer per substrate | 2–3 mils |
| Field coat | Sherwin-Williams 100% silicone roof coating (two passes) | 20–30 mils |
| Total | 22–33 mils |
Service life 10–15 years. The argument for the Sherwin-Williams stack is the store network. A facility manager who already runs a Sherwin-Williams commercial account gets local pickup, rep support, color and reflectance data, and warranty paperwork through a relationship that already exists. Reinforce the seams with embedded fabric regardless of what the field-coat-only marketing implies; an unreinforced seam is the first place a coated roof leaks.
Systems Compared
| System | Total DFT | $/sq ft installed | Service life | Best for |
|---|---|---|---|---|
| A — GACO | 22–28 mils | $2.50–3.50 | 15–20 yrs | Ponding roofs, single-ply restoration, longest warranty |
| B — Henry 587 | 22–31 mils | $2.00–3.00 | 12–15 yrs | Mixed-substrate roofs, stocked availability |
| C — Sherwin-Williams | 22–33 mils | $1.75–2.75 | 10–15 yrs | Existing S-W commercial accounts, local support |
Pricing assumes a 10,000+ sq ft roof through a manufacturer-authorized contractor, with power-wash, primer where required, seam reinforcement, and two field passes included. Small roofs under 5,000 sq ft run 25–50% higher per square foot. Self-applied material-only cost (no labor, no warranty) drops to roughly $0.75–1.25 per square foot. See the contractor path before going that route.
Application & Contractor Path
A silicone restoration is a defined, repeatable process, which makes a small section approachable for a trained in-house crew. On a 1,500 sq ft single-ply maintenance section with no warranty requirement, a maintenance crew that power-washes correctly, runs the adhesion test, reinforces the seams, and meters the wet mils can do the work. The skill is in the prep and the seam detail, not the rolling.
On anything that carries a manufacturer system warranty (10, 15, or 20 years), the spec calls for a manufacturer-authorized applicator. The warranty is tied to three things: the applicator credential, the documented field DFT, and the inspected seam and penetration detail. GACO, Henry, and Sherwin-Williams each run an authorized-contractor program, and the manufacturer rep performs a pre-coat roof inspection and a post-coat warranty inspection. Specify a contractor who holds the current authorization for the product line you are coating with, not a general roofer who “has done coatings.”
Two questions before signing. First: what is the adhesion-test result on this roof, and what primer does it dictate? A contractor who wants to skip the ASTM C794 peel test on a weathered single-ply is guessing. Second: how are the wet mils metered and logged? A notched wet-film gauge reading per pass, recorded against the spec, is the document that supports the warranty claim if the roof ever fails.
The manufacturer rep network on all three systems includes a free pre-bid roof survey: core cuts to check for wet insulation, seam condition assessment, and a coverage calculation that sets the gallon count. Use it. A wet-insulation finding before the coating goes down saves the entire job; a wet-insulation finding after the coating blisters costs the recoat plus the tear-out.
Failure Modes
Five failures cover the bulk of silicone roof coating rejections and warranty claims. Every one is preventable in the prep and detail phase.
- Coating over trapped or wet insulation. Cause: no core cuts before coating; moisture in the roof assembly drives up through the deck and blisters the cured silicone film. Prevention: infrared or core-cut moisture survey before bid; cut out and replace wet insulation; never coat a roof with a known moisture problem underneath.
- Adhesion failure from inadequate wash or wrong primer. Cause: chalk, dirt, ponded silt, or biological growth left on the surface, or bare metal and asphalt coated without primer. Prevention: power-wash to a clean substrate; run the ASTM C794 adhesion-in-peel test; prime where the test fails. On metal, solvent-clean oils per SSPC-SP1 first.
- Unreinforced seams and penetrations. Cause: field crew rolled the coating across open laps and around drains without embedding reinforcing fabric. Prevention: base coat with embedded polyester fabric at every seam, lap, drain, curb, pipe, and penetration before the field coat. This is the most common first-leak location on a coated roof.
- Under-applied DFT. Cause: stretching gallons to cut material cost, single-pass application, or coating in one heavy pass that sags and reads thin on the high points. Prevention: meter wet mils per pass; apply in two passes; log the gallon count against the measured roof area. A 25-mil system rolled at 18 mils loses years off the back end of the cycle.
- Recoating silicone with anything but silicone. Cause: a later maintenance crew tops the roof with acrylic or asphalt because that is what was on the truck. Nothing adheres to cured silicone except more silicone. Prevention: document the coating chemistry in the O&M manual; specify silicone for all future maintenance coats; wash and recoat with the same chemistry at end of cycle.
The wet-insulation failure is the expensive one. The only fix is tear-out, which is the cost the coating was supposed to avoid. The seam-detail failure is the most common. Both are caught in the pre-bid survey by a competent applicator.
Where to Buy / Spec
| Channel | Best for | Path |
|---|---|---|
| Manufacturer-direct (GACO/Holcim Elevate, Henry, S-W Commercial) | Spec’d projects, warranty, rep roof survey | GACO · Henry · S-W Commercial rep |
| Roofing distributor (ABC Supply, Beacon, SRS) | Bulk material, contractor accounts | Distributor account with project pricing |
| Pro retail (Sherwin-Williams stores) | Smaller roofs, local pickup, account support | S-W store locator |
| Amazon Business | Small maintenance kits, single-section repair | Search by manufacturer (verify spec product, not retail equivalent) |
Manufacturer-direct is the recommended channel on any roof above 5,000 sq ft. The rep survey, the warranty paperwork, and the authorized-applicator match are worth more than any retail discount on the pail. For metal-roof seam restoration specifically, confirm the primer against the corrugated metal roof prep guide before specifying. Galvanized and bare-steel substrates change the primer call.
