Paint Mil Thickness Explained: Wet Mils, Dry Mils, and DFT
A mil is one thousandth of an inch. Wall paint goes on at 4 to 6 wet mils, dries to 1.5 to 2 mils DFT, and paint mil thickness is the number every coverage and durability claim is built on.
Most paint problems people blame on the paint are actually thickness problems. The bedroom wall looks streaky a week after a heavy one-coat job. The bathroom finish burnishes on the first wipe. The exterior peels off in sheets two summers later. Almost none of that is the paint’s fault. The film was applied at the wrong mil thickness, and the chemistry the formulator engineered into the can never had the chance to set up.
A mil is one thousandth of an inch. Not a millimeter. That confusion costs people money every season — a millimeter is about 39 mils, so somebody who thinks they’re laying down “two mils” of elastomeric at 2 mm is actually putting down 78. Mils exist as a unit because cured paint films live in a narrow window between roughly 1 and 5 thousandths of an inch, and millimeters would force every spec into awkward decimals. Once you start thinking in mils, the rest of the coverage and durability conversation snaps into place.
What One Mil Actually Looks Like
Numbers this small are hard to hold in your head, so anchor them to things you can pick up.
| Object | Approximate thickness |
|---|---|
| One mil | 0.001 inch, or 25.4 microns |
| Kitchen plastic wrap | about 0.5 mil |
| A human hair | about 3 mils |
| A sheet of copy paper | about 4 mils |
| A credit card | about 30 mils |
| One millimeter | about 39 mils |
Two coats of interior wall paint, fully cured, come to roughly 4 mils — one sheet of copy paper standing between your drywall and every scuff, wipe, and shoulder the room will ever produce. That thinness is why the difference between 3 and 4 mils of finished film shows up as years of service life rather than as anything you can see.
One more conversion is worth memorizing, because European and industrial data sheets quote microns instead. 1 mil = 25.4 microns. A spec reading 50 microns DFT is asking for just under 2 mils; a 125-micron primer spec is about 5.
Wet Mils vs Dry Mils
Every paint conversation about thickness uses two numbers, and the gap between them is the whole point.
Wet film thickness (WFT) is what’s on the wall right after the roller passes over it. For a quality interior acrylic, that’s 4 to 6 mils. The reason for that range is the binder and pigment that will stay behind are suspended in water and a small fraction of coalescing solvents that won’t. About 60 to 65% of the wet film, by volume, is going to leave.
Dry film thickness (DFT) is what’s left once the carriers evaporate and the binder particles coalesce into a continuous skin. A 4-mil wet film of typical interior latex dries to about 1.5 mils. A 6-mil wet film dries to about 2.2 mils.
The relationship is one line of arithmetic, and it is the same on every can ever made:
DFT = WFT × volume solids
A paint listed at 35% volume solids, applied 4 mils wet, dries to 1.4 mils. The same 4 wet mils of a 48% paint dries to 1.9. Nothing about the roller changed; the can did. The fusing step behind that number — water out first, then binder particles coalescing under surface tension — is how a paint film actually forms, and the resin doing the fusing is the binder.
Volume solids is the single most useful number on a technical data sheet that nobody reads. Two cans can carry the same 350 sq ft per gallon claim and leave very different amounts of film behind, and that gap is most of where the price difference goes.
Why the Can Says 350 Sq Ft per Gallon
The coverage spec on the back of every can is reverse-engineered from one target: about 1 mil of dry film at the manufacturer’s stated wet spread rate. The math is unforgiving, and it runs off a single constant.
Theoretical coverage (sq ft/gal at 1 mil DFT) = 1,604 × volume solids
The 1,604 is just unit bookkeeping. One gallon spread exactly one mil thick covers 1,604 square feet — if the gallon were pure solids and nothing evaporated. Multiply by the fraction that stays behind and you get the honest ceiling.
| Volume solids | Theoretical coverage at 1 mil DFT |
|---|---|
| 30% | 481 sq ft/gal |
| 35% | 561 sq ft/gal |
| 40% | 641 sq ft/gal |
| 45% | 722 sq ft/gal |
Theoretical means perfectly applied, no waste, no overspray, no absorbent substrate. Real-world coverage cuts those numbers by 30 to 40%, and the losses are predictable — porous drywall drinks 10 to 20%, paint left in the tray and locked in the nap costs another 5%, texture adds surface area you never measured, and airless overspray can throw away 20 to 40% outdoors. That’s how a 40%-volume-solids interior latex with a theoretical 641 sq ft/gal at 1 mil dry lands at the 350 to 400 sq ft per gallon you actually see on the label. The spec is one coat at roughly 1.5 mils dry, applied at about 4 mils wet, on a smooth primed substrate. Push the wet film thicker and the per-gallon coverage drops in direct proportion. Spread it thinner and the dry film falls below the hide threshold.
For the deep version of the coverage math, see how much paint you actually need; for pricing a whole job off those numbers, how to estimate a paint job walks the labor side.
What Mil Thickness Means When You’re Buying Paint
This is where the abstraction turns into money. Published volume solids, from manufacturers’ own data sheets:
| Product | Volume solids (published) | Dry mils from a 4-mil wet film |
|---|---|---|
| Builder / contractor-grade flat | under 30% | under 1.2 |
| Sherwin-Williams Cashmere Interior Acrylic Flat | about 39% | 1.6 |
| Sherwin-Williams Emerald Interior Latex Matte | about 41% | 1.6 |
| Benjamin Moore Regal Select | about 43% | 1.7 |
| Benjamin Moore Aura | about 48% | 1.9 |
Most sheets publish a ±2% tolerance and the figure shifts a little between sheens in the same line, so read these as the shape of the market, not to the decimal. Behr publishes competitive volume solids on its upper interior lines too — the gap between the tiers of one brand is usually wider than the gap between brands, which is the real argument in Behr Marquee vs Premium Plus.
Three buying rules fall out of that table.
Compare volume solids, not price per gallon. A 48% paint at $80 leaves about 60% more cured film per gallon than a 30% paint at $40. Two gallons of the cheap one cost the same, land thinner, and cost you twice the labor.
Cheap paint hides with pigment, not with binder. Extra pigment in a thin binder buys opacity in the store and a chalky, low-cohesion film on the wall. That ratio is pigment volume concentration. Volume solids tells you how much film you get; PVC tells you what kind.
“One coat” is a hide claim, not a thickness claim. A paint can block the old color in one pass and still be a 1.5-mil film where the spec wanted 3 — the same confusion at the heart of the paint-and-primer-in-one question.
Target Mil Thickness by Coating Type
Wall paint is the narrowest case. The window widens fast once you leave drywall.
| Coating | Wet mils per coat | Dry mils per coat | Typical coats |
|---|---|---|---|
| Interior latex wall paint | 4–6 | 1.5–2 | 2 |
| Waterborne trim enamel | 4–5 | 1.5–2 | 2 |
| Latex primer | 4–5 | 1.2–1.8 | 1 |
| Premium exterior acrylic | 5–7 | 2–3 | 2 |
| Elastomeric masonry coating | 10–20 | 5–10 | 2 |
| Thin-film garage epoxy | 6–12 | 3–5 | 2 |
| High-build 100% solids epoxy | 10–60 | 10–60 | 1 |
Two rows deserve a note. Elastomeric is specified by total system DFT, not per coat — most masonry specs call for around 10 dry mils across two passes, because the crack-bridging and elongation that justify the product only exist above that thickness. Under-applying it doesn’t give you a thin elastomeric, it gives you an expensive ordinary paint. That’s the mechanism behind how elastomeric paint works.
100% solids epoxy is the one place wet and dry are the same number, because nothing evaporates — ten wet mils cure to ten dry mils. That’s why the serious garage floor coatings sell on solids content, and why a 3-mil water-based kit and a 20-mil solids system aren’t competing products.
Penetrating deck stains sit outside the table entirely. They soak in rather than building a film, so mils aren’t a meaningful spec — opacity and solids drive service life instead, as in the deck stain opacity guide.
How a Paid Contractor Measures It
Two tools, both cheap, both used in the first five seconds after the roller or sprayer touches the wall.

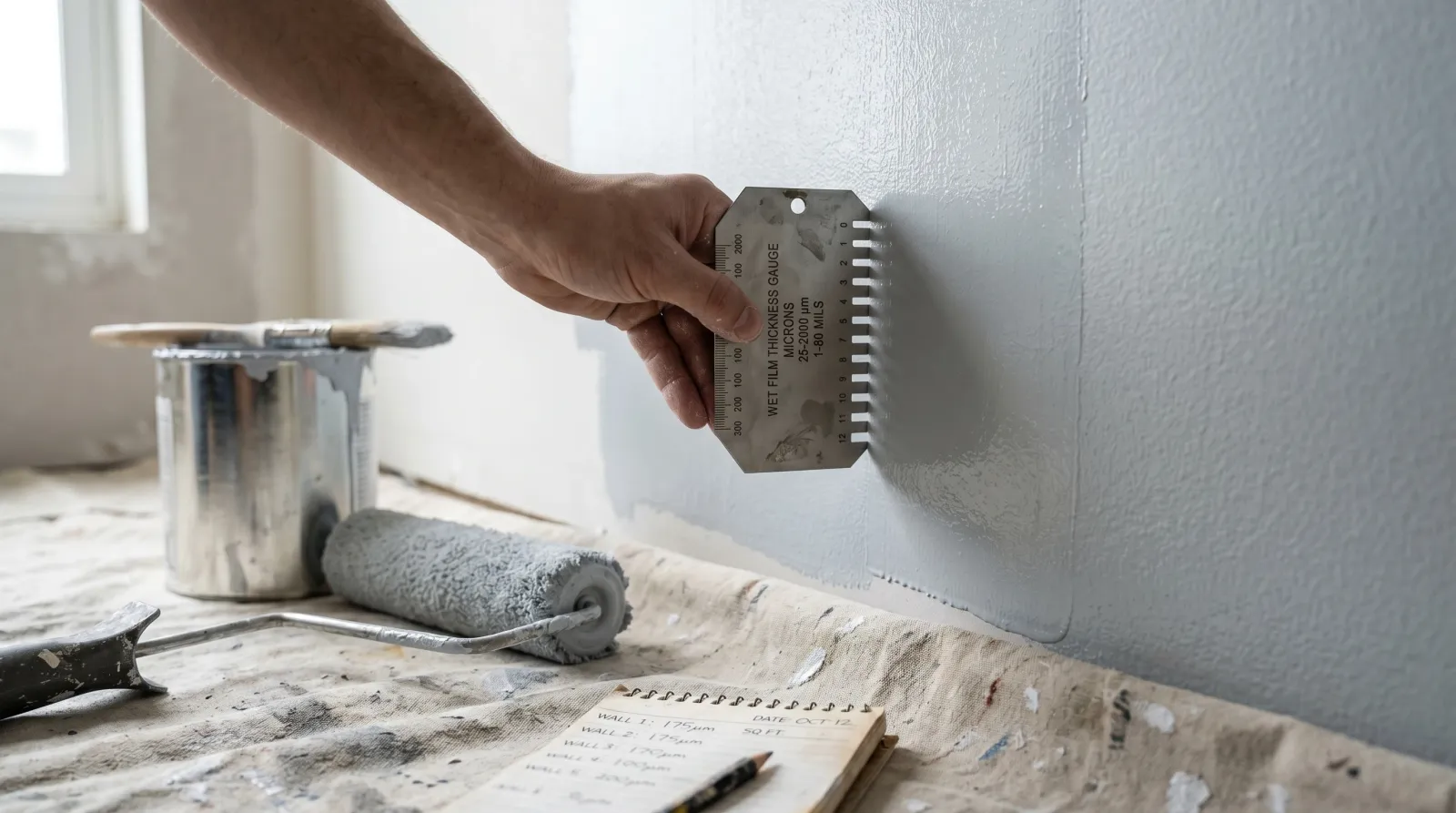

Wet-film notched comb gauge. A stainless-steel card about the size of a credit card, with notched teeth of progressively deeper depth (typically 1, 2, 3, 4, 5, 6, 8, 10, 12 mils). Hold it at 90 degrees to the surface, press until the flat ends contact the substrate, wait a second for the teeth to wet, then pull it straight out without tilting. Read the deepest tooth with paint on it and the next tooth that came out clean — the true wet film sits between those two. Takes one second. It leaves marks, so take the reading in a spot you’re about to recoat, and take it while the paint is still wet; once the film flashes off, the comb just scratches it.
Dry-film magnetic or eddy-current gauge. A handheld electronic probe (PosiTector and DeFelsko are the common commercial brands) that reads cured film thickness over metal and other substrates non-destructively. Commercial repaint specs always require DFT readings at a defined grid pattern, recorded for the warranty file. Homeowner relevance: zero, unless you’re paying somebody to coat a garage floor or a metal door and you want proof the system thickness was hit.
A pro spraying an exterior checks the wet film every few minutes to confirm the gun, the fluid pressure, and the technique are still putting down the target mils. A homeowner rolling a bedroom is fine without a gauge — the spread rate is forgiving and the roller does the calibration for you.
Two Thin Coats vs One Thick Coat
This rule shows up on every TDS for a reason. Push a latex film past about 7 mils wet on a vertical surface and the chemistry breaks down in three ways at once.
The film sags and ridges under its own weight. Surface tension can’t hold a thick wet skin against gravity. You get drips on a door, curtain marks below window heads, fat rolls along baseboards.
The surface skins over a wet underlayer, trapping water and coalescing solvents that can’t reach the air. The cured film is softer, more porous, and more prone to burnish under cleaning. A bathroom wall painted one thick coat shows finger-print gloss after the first scrub — that’s burnishing. The same paint at two normal coats shrugs the scrub off, and the cycle counts behind washability and scrubbability claims are all measured on a properly built two-coat film.
Optical hide goes down, not up. Pigment particles need a fully coalesced binder around them to scatter light evenly. A thick film coalesces unevenly, and the cured surface goes patchy under raking light even when the color is right. This is also the chemistry behind why dry time and cure time are different numbers.
Two coats at 2 mils dry each give you 4 mils of fully coalesced film. One coat at 4 mils dry gives you 4 mils of partially coalesced film with internal voids. Same nominal thickness, very different durability. The cured film is what the binder is selling, and the binder needs the right wet thickness to do its job.
Where Mil Thickness Quietly Goes Wrong
Nobody sets out to under-apply. It happens through four ordinary decisions.
Spraying without back-rolling. A sprayer lays atomized paint on top of the substrate instead of pushing it in, and on a porous or textured wall the film can land 30% under target while looking perfectly covered. Following the gun with a roller is what levels it and drives it into the profile — see back-rolling.
Over-thinning. Every ounce of water dilutes the volume solids. Thinning a 40% paint by 10% drops it to about 36%, so the same wet film dries roughly 10% thinner. Sometimes that’s the right trade for flow; the limits are in how much you can thin paint.
The wrong roller nap. The nap carries the mils. A 3/8-inch nap on smooth drywall delivers close to the spec wet film; a 1/4-inch foam sleeve delivers noticeably less, which is how a job can hit its gallon count and still be thin.
Stretching the last gallon. The final wall is where coverage rates get invented. A corner spread to 500 sq ft/gal is 25% thinner than the rest of the room, and it’s the corner that flashes and fails first — the pattern behind most lap marks.
The Practical Takeaway
Roll at the spread rate the can specifies and you’ll land in the 4-to-6 wet, 1.5-to-2 dry window without thinking about it. Apply two coats. Don’t try to save a trip with one heavy pass. If you’re spraying, get a $10 wet-film comb and use it. If somebody’s pricing a commercial coating job by the gallon without referencing DFT, walk away from the bid.
To check any finished job — yours or a contractor’s — run the arithmetic backwards. Wall area painted, divided by gallons used, divided by coats. Much over 400 sq ft per gallon per coat on smooth drywall means the film is thinner than the label assumed, whatever it looks like from across the room.
The whole conversation reduces to one rule. Buy paint by the volume solids on the TDS, apply it at the wet-film thickness the can specifies, and let the chemistry land where the formulator engineered it.
